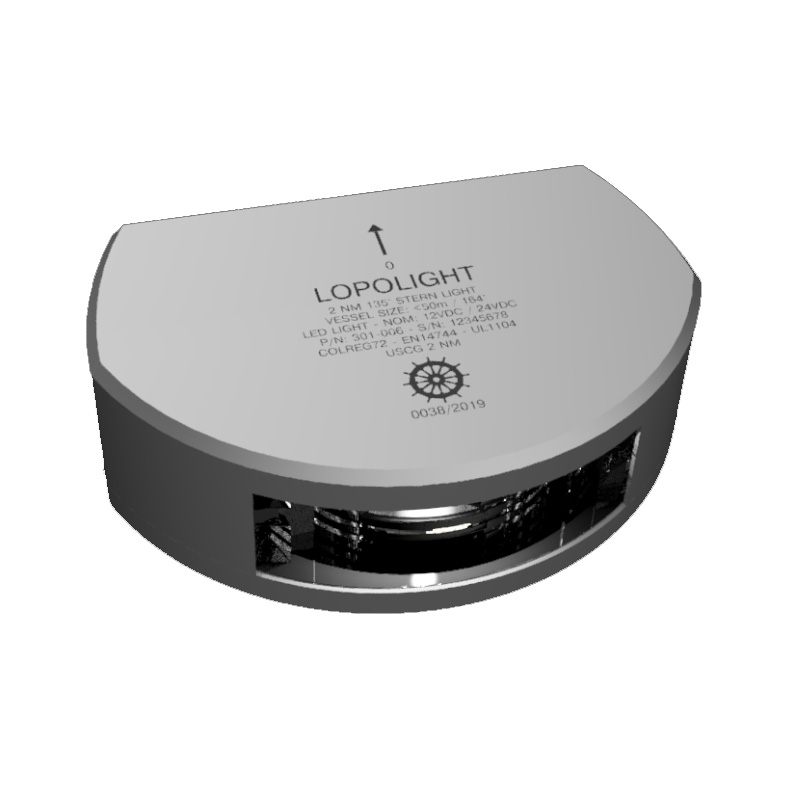

PERÄVALO VAL.PYSTYPINT.2NM

135° stern light, single, vertically mounted

+ New generation.
+ LED (Light Emitting Diode) navigation light.
+ Unique and precise definition of light angles.
+ Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.
+ Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin.
+ Waterproof to IP 68+ (submersible).
+ Low power consumption – 70 to 90% less than traditional navigation lights.
+ Full brightness with input voltages ranging from 10 to 32 Volts.
+ All Lopolights have been tested several times during production, a total of more than 24 hours.
+ Easy to install, adaptor and screws included (when applicable).

Approvals: Worldwide typeapproval (please refer to certificates on Lopolight.com)

Included in package: 1 Navigation light, precabled with 6 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide

Measurements: See drawing

Materials: Anodised aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.

Supply voltage: 10,0 – 32,0 VDC

Power consumption: 1,1 Watt, Current @ 12 VDC: 85 mA: Current @ 24 VDC: 48 mA

Light colors: White 135°

Intensity: >5,4cd

Visibility (@K=0.8): 2 nm

Number of LED’s: 1

Suggested feed cables: 12 VDC: 2 x 0,50 mm2, 24 VDC: 2 x 0,50 mm2

Expected life

Vessel size: 50 meter (164 feet)

Mounting: Vertical
